Casement / Awning
755, N.C. Casement/Awning with built-in J-channel
755J, N.C. Casement/Awning without J-Channel

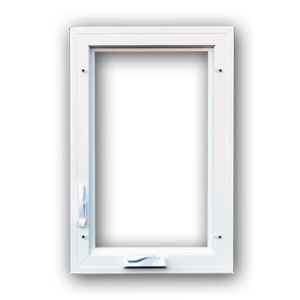

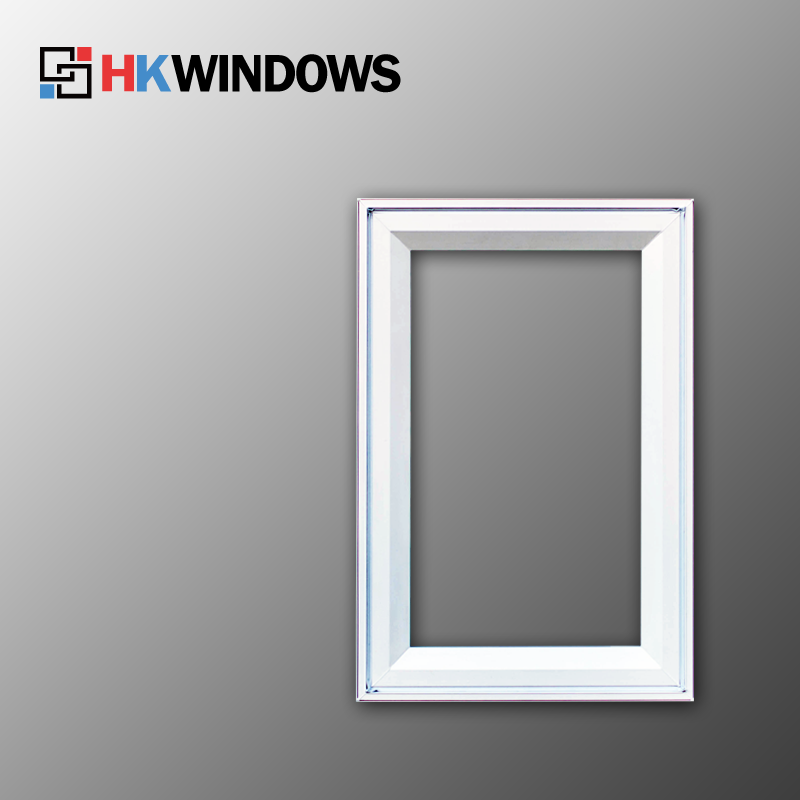

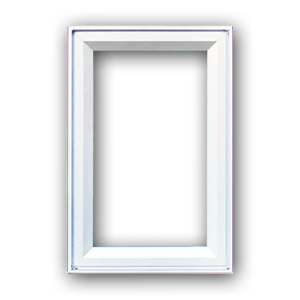

795, Rep. Casement/Awning No J-Ch, No Nailing Fin
A top-of-the-line casement/awning window that offers the best in aesthetics, efficiency and durability.
Many prefer this unique window for the unobstructed views and ease of operation.

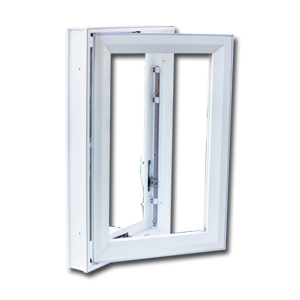

Jamb hinges allow the window to completely open for maximum ventilation and structural integrity to guard againt air and water infiltration. The only different between a casement and an awning is their location of hinges, where the hinge on casement is location on the sides, but the hinge of an awning is located at the top.
Series / Types: Casement / Awning
Test Size: As Tested per AAMA 101 / I.S. 2-97 / Gateway (40"x72")
Min Size Casement: Width 16" x Height 24"
Max Size Casement: Width 112" x Height 72"*
*Max size only available as combination triple unit XOX, Casement-Fixed-Casement. Contact office for more information.

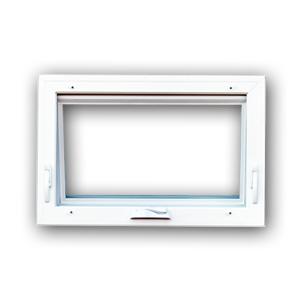

Min Size Awning: Width 24" x Height 16"
Max Size Casement: Width 48" x Height 36"
Structural Rating: DP35, DP50, Impact Rated Available, in accordance with AAMA 101-97
Forced Entry: Grade 10, in accordance with AAMA 101-97
NFRC / Energy Star: Rating simulations available for various glass packages
Frame Depth: 3 1/4"
Frame Color: Cream White or Tan/Beige
Frame style: TG755 OR TG755J, Integral J-Channel with Brickmold exterior shape / TG795, Exterior bevel
Sill Type: Slope sill
Receptor Groove: Universal, Face mount
Sash Removal: Take-out (Screw driver requiered)
Truth maximum hardware: Operator system, hinge system and multi-point and single point locking system
Glazing System: Interior glazing bead, tape or unit glazed
Overall Thickness (OAT): 7/8"
Glass Type: Clear, LOW-E270, LOW-E366, Tinted, Tempered, Obscure
Grid types: 5/8" Flat, 13/16" Flat, 11/16" Contour, 1" Contour
Pattern: Regular HK Windows Standard, Prairie 6Lites, Prairie 9Lites, and other custom patterns available
Screen: Full screen
Gas: Standard with LE270 glass
Lock: Wide, deep interlocks
Latch: recessed "tilt" latches
Weatherstripping:
Dual weatherstripping at the meeting rail
Dual weatherstripping around perimeter of sash
Limited Lifetime Warranty
