Double Slider

734, New Construction DS with built-in J-channel

734J, New Construction DS without J-Channel

704, Replacement DS No J-channel, No Nailing Fin

This excellent profile, combines the look and great performance of Double Hung with the practicality of the single slider.

Both sashes slides horizontally, also both sashes are removable for easy cleaning and maintenance.

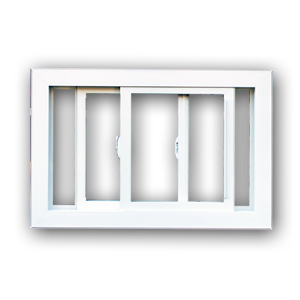

These profiles are also available as Triple Sliders, either XOX 1/3-1/3-1/3 or XOX 1/4-1/2-1/4, where both side sashes slides into the middle fixed section of the window.

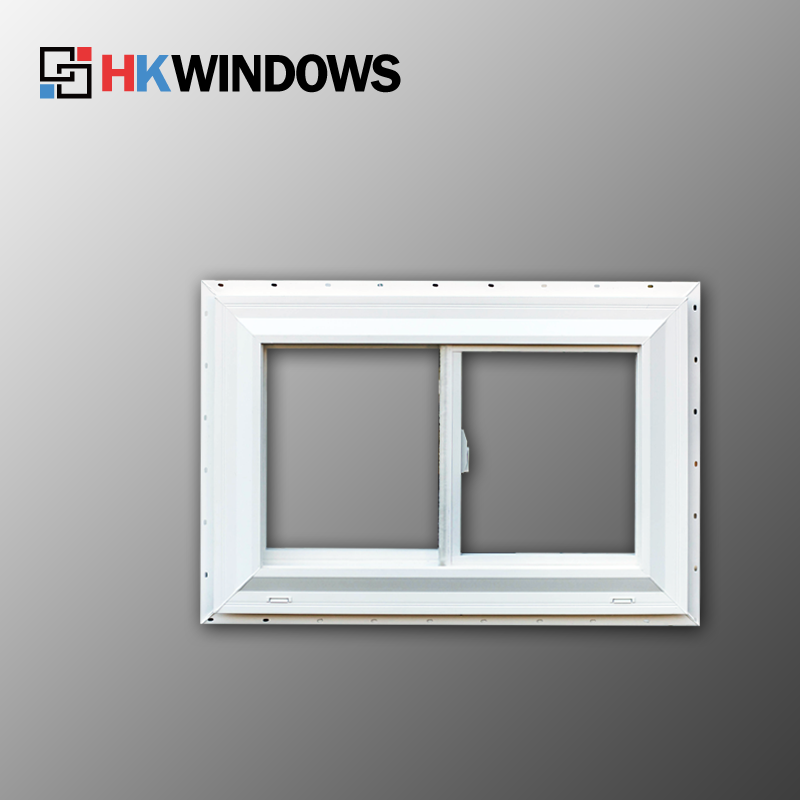

New Construction Double Slider TG734 Exterior

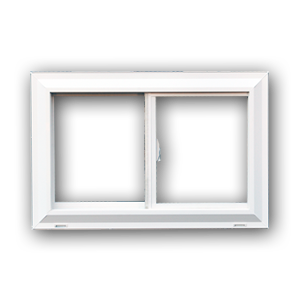

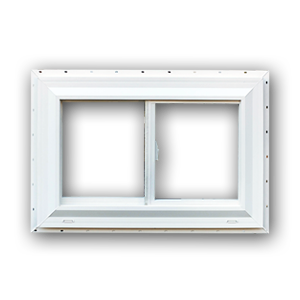

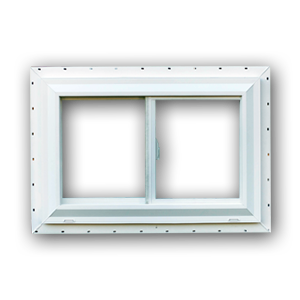

New Construction Double Slider TG734 Exterior New Construction Double Slider TG734J Exterior Replacement Double Slider TG704 Exterior Double Slider Interior XX Sliding
GENERAL

Series / Types: Double Slider

Test Size: As Tested per AAMA 101 / I.S. 2-97 / Gateway (72"x48")

Min Size XX: Width 24" x Height 16"

Max Size XX: Width 72" x Height 60"*

Min Size XOX: Width 60" x Height 16"

Max Size XOX: Width 112" x Height 60"*

*Bigger sizes may be available. Please contact office or nearby distributor for more information.

REGULATORY

Structural Rating: DP35, DP50, Impact Rated Available, in accordance with AAMA 101-97

Forced Entry: Grade 10, in accordance with AAMA 101-97

NFRC / Energy Star: Rating simulations available for various glass packages

FRAME

Frame Depth: 3 1/4"

Frame Color: Cream White or Tan/Beige

Frame style: TG734 OR TG734J, Integral J-Channel with Brickmold exterior shape / TG704, Exterior bevel

Sill Type: Slope sill

Receptor Groove: Face mount

Cream White
Tan/Beige
SASH / LITE

Sash Removal: Lift-out

Truth Locks: Cam

Keepers: No keeper

IG

Overall Thickness (OAT): 7/8"

Glass Type: Clear, LOW-E270, LOW-E366, Tinted, Tempered, Obscure

GRID

Grid types: 5/8" Flat, 13/16" Flat, 11/16" Contour, 1" Contour

Pattern: Regular HK Windows Standard, Prairie 6Lites, Prairie 9Lites, and other custom patterns available

OTHER

Screen: 1/2 screen or Full screen (restriction may apply)

Gas: Argon gas, Standard with LE270 glass

Lock: Wide, deep interlocks

Latch: recessed "tilt" latches

Weatherstripping:

Dual weatherstripping at the meeting rail

Dual weatherstripping around perimeter of sash

WARRANTY

Limited Lifetime Warranty
