Single Slider

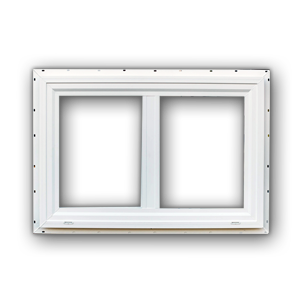

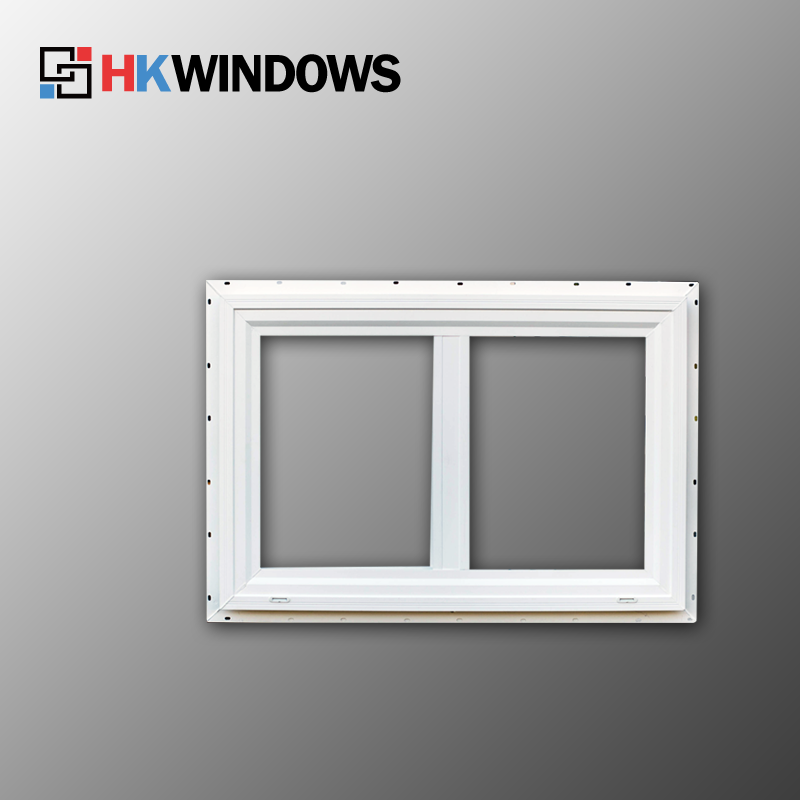

9224, New Construction SS with built-in J-channel

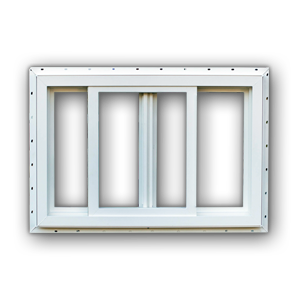

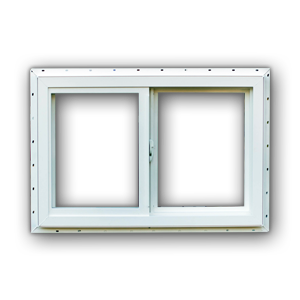

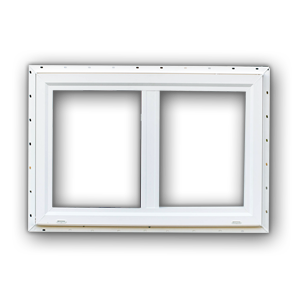

9204, New Construction SS without J-Channel
Our horizontal sliders are windows where the movable sash slides along the sill of the window.
We use the same locking system as our single hung which exceeds the industry standard for forced entry. It's available in XO, Outside looking in left side operable or OX, Outside looking in right side operable.
Series / Types: CS 9224 Single Slider with Brickmold / Integral J-Channel
Test Size: As Tested per AAMA 101 / I.S. 2-97 / Gateway (60"x44")
Min Size: Width 24" x Height 14"
Max Size: Width 72" x Height 60" / bigger size available. Please contact office or dealer for any question.
Structural Rating: DP35 OR DP50 Available, in accordance with AAMA 101-97
Forced Entry: Grade 10, in accordance with AAMA 101-97
NFRC / Energy Star: Rating simulations available for various glass packages
Frame Depth: Strong, Durable 3 5/32" wide frame
Frame Color: Cream White or Tan/Beige
Frame style: Integral J-Channel with Brickmold exterior shape
Sill Type: Slope sill, weeped
Receptor Groove: Face mount / Hidden exterior groove
Sash Removal: Tilt-in / Take-out
Truth Locks: Lock into meeting rail
Keepers: No keepers
Overall Thickness (OAT): 3/4"
Glass Type: Clear, LOW-E270, LOW-E366, Tinted, Tempered, Obscure
Grid types: 5/8" Flat, 13/16" Flat, 11/16" Contour, 1" Contour
Pattern: Regular HK Windows Standard, Prairie 6Lites, Prairie 9Lites, and other custom patterns available
Screen: 1/2 screen
Gas: Argon gas available
Lock: Wide, deep interlocks
Latch: Recessed "tilt" latches
Weatherstripping:
Dual weatherstripping at the meeting rail
Dual weatherstripping around perimeter of sash
Limited Lifetime Warranty
