Single Hung

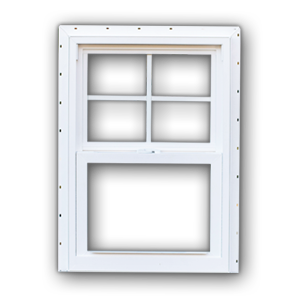

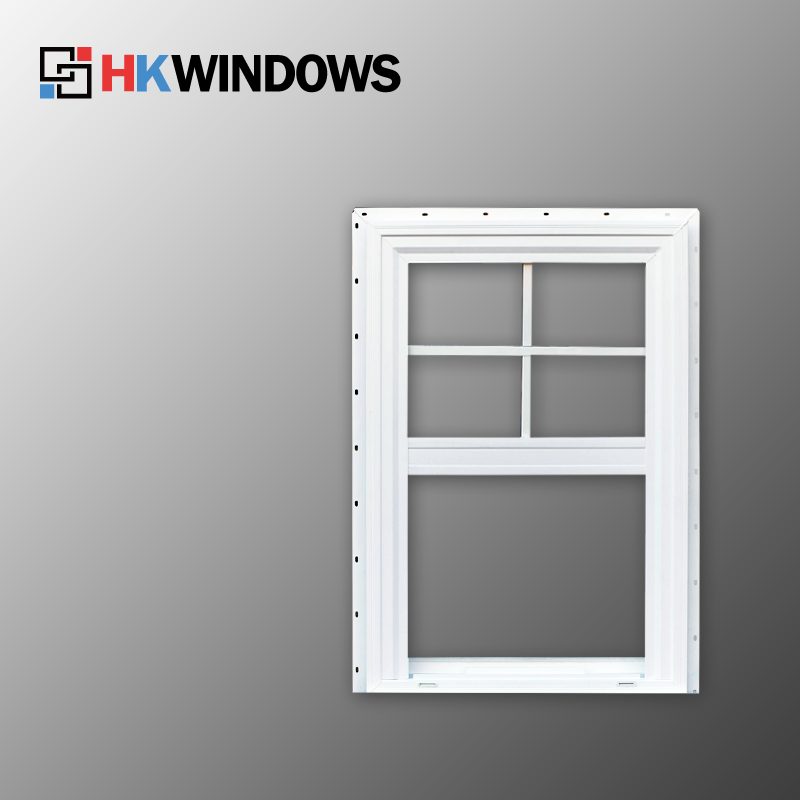

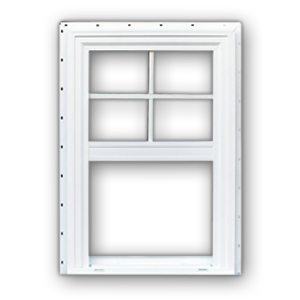

9220, New Construction SH with built-in J-channel

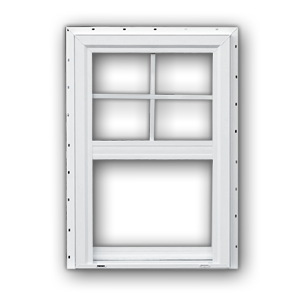

9200, New Construction SH without J-Channel
Our Single-Hung is designed with many of the distinctive looks and features found in more expensive windows.
Our Single-Hung Series is a window that is appropriate for nearly any home. This popular type of window features a stationary top sash and a bottom sash that slides vertically. A Terrific Looking Window!
Series / Types: CS 9220 Single Hung with Brickmold / Integral J-Channel
Test Size: As Tested per AAMA 101 / I.S. 2-97 / Gateway (44"x60")
Min Size: Width 14" x Height 24"
Max Size: Width 112" x Height 82"
Structural Rating: DP35 OR DP50 Available, in accordance with AAMA 101-97
Forced Entry: Grade 10, in accordance with AAMA 101-97
NFRC / Energy Star: Rating simulations available for various glass packages
Frame Depth: Strong, Durable 3 5/32" wide frame
Frame Color: Cream White or Tan/Beige
Frame style: Integral J-Channel with Brickmold exterior shape
Sill type: Slope sill, weeped

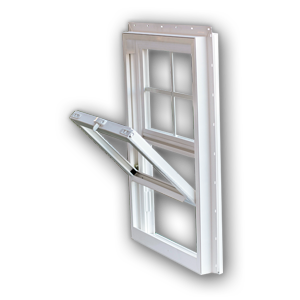

Sash Removal: Tilt-in / Take-out
Balance system: Inverted block & tackle
Truth Locks: Cam
Keepers: Face mounted
Lift Rail / Pull Stile: Handle on bottom rail
Glazing System: Exterior glazed rail
Reinforcement: Keeper rail / Lock rail
Overall Thickness (OAT): 3/4"
Glass Type: Clear, LOW-E270, LOW-E366, Tinted, Tempered, Obscure
Grid types: 5/8" Flat, 13/16" Flat, 11/16" Contour, 1" Contour
Pattern: Regular HK Windows Standard, Prairie 6Lites, Prairie 9Lites, and other custom patterns available
Screen: 1/2 screen
Gas: argon gas available
Lock: Wide, deep interlocks
Latch: recessed "tilt" latches
Weatherstripping: Dual weatherstripping at the meeting rail
Dual weatherstripping around perimeter of sash
Limited Lifetime Warranty
